Dension Gateway 300

The Dension iPod Interface brings complete integration of the Apple iPod/iPhone or USB with your factory fitted stereo! The Dension Gateway 300 iPod car adapter and USB car adapter brings you maximum control of your music sources, with minimum fuss. It opens up the car’s original audio system to allow the playback of iPod or USB music, through your entertainment system’s speakers. Tuck your source away in the glove box and you can control the functions of your iPod or USB using the controls on your radio. Depending on your car’s display capability, you will see information displayed on your radio or information cluster telling you the song names, or where you are in the menus. There are no extra boxes to stick on the dashboard, or unsightly cables trailing around the vehicle. The interior of your car looks exactly like it did the day you bought it, it just does a lot more. You must choose the docking cable option for a neater installation by simply having everything tucked away in your glove box or armrest.

Full Integration

Dension translates CD changer messages to iPod controls and switches the iPod automatically on and off as you select/deselect the CD changer source and your iPod is charged while connected.

Control at Your Finger Tips

The Gateway 300 iPod car adapter and the USB car adapter works like an interpreter between your devices and the car, converting instructions from the car’s controls into a language that your iPod can understand and respond to. When connected into the car, Gateway 300 emulates a CD changer (usually, sometimes it’s an auxiliary input), thus making those controls on the radio available to control the devices connected to it. Of course, every Gateway 300 comes with a comprehensive user manual, but in most cases, you select the CD changer function, then CD6, and a series of menus are opened up to you to control your music. The FFWD key and/or steering wheel controls are then all you need to navigate around your iPod. Gateway 300 will also send all this information to the display in your car, which might be in the radio, between the dials (speed and revs), or in the radio display, so you can always see exactly where you are or what’s playing. If your car is fitted with a CD changer, the Dension Gateway will take its place, but you can retain it by fitting a CD retention kit. Please note though that text capable cars do not support CDC retention.

Text Information

Using the controls on the radio or the steering wheel, the menus of the iPod can then be browsed and music selected. Depending on your cars display capability, you will see information displayed on your radio or information cluster* telling you the song details (e.g. Songs, albums, artists etc), or where you are in the menus. As a rough guide, if your car displays radio station names, it is probably capable of displaying your iPod track information. *The amount of text available depends on the car’s capabilities.

  • Menu based control and browsing
  • Music playback from iPod (iPhone) or USB drive with text display (music information)
  • Control through steering wheel buttons (if available) or the head unit buttons
  • USB drive connection is added to your car
  • AUX-in adds the possibility to connect external sound sources to your radio
  • Depending on the car and audio system (radio) specification the Gateway 300 can display all song related information on the car radio or cluster display and allows iPod menu browsing, too
Package Contents
  • Hardware
  • Car side harness (includes power cable) – enables glove box installation
  • USB cable and clip
  • Zip ties


Dension Gateway 300 GW33PC1

Compatibility Chart


Car Model


Radio Description
CitroenC22005–2009RD4 (with Mode button) / RD4 (without Mode button)
C32005–2009RD4 (with Mode button) / RD4 (without Mode button)
C42004–2013RD4 (with Mode button) / RD4 (without Mode button)
C4 Picasso2006–2013RD4 (with Mode button) / RD4 (without Mode button)
C52005–2013RD4 (with Mode button) / RD4 (without Mode button)
C62006–2013RD4 (with Mode button) / RD4 (without Mode button)
C82004–2013RD4 (with Mode button) / RD4 (without Mode button)
Peugeot2072006–2013RD4 (with Mode button)
3072005–2013RD4 (with Mode button)

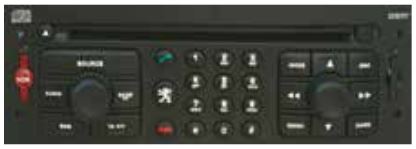

3082007–2013RD4 (with Mode button) / RT3
30082009–2013RD4 (with Mode button) / RD4 (without Mode button)

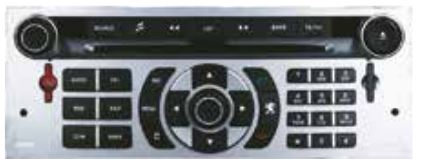

4072005–2013RD4 (with Mode button) / RD4 (without Mode button) / RT4
50082009–2013RD4 (with Mode button) / RD4 (without Mode button)
6072005–2013RD4 (with Mode button) / RT3 / RD4 (without Mode button)
8072005–2013RD4 (with Mode button) / RT3 / RD4 (without Mode button)
3072005–2008RT3 / RD4 (without Mode button)
2072001-2006RD4 (without Mode button)
3082008-2013RD4 (without Mode button)

Citroen Headunits

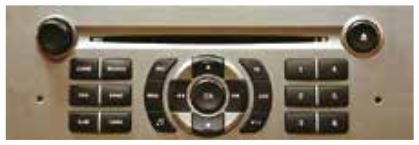

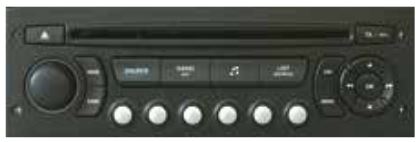

RD4 (with Mode Button)

RD4 (without Mode Button)

Peugeot Headunits

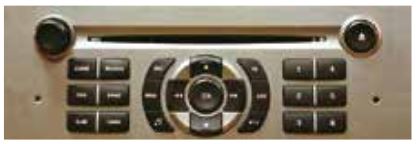

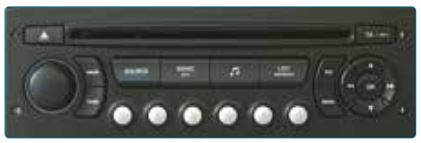

RD4 (with Mode button)

RD4 (without Mode Button)



iPod/iPhone Compatibility

  • iPod 4G / 4G Photo
  • iPod nano / Nano 2G / Nano 3G / Nano 4G
  • iPod mini
  • iPod 5G Video
  • iPod Classic
  • iPod touch / touch 2G
  • iPhone
  • iPhone 3G

USB Compatibility

  • Flash memory and hard disk drive (USB mass storage)
  • File system: FAT16 or FAT32

Audio Formats Compatibility

  • MP3
  • WMA
  • Ogg
  • WAV

Want us to Install?

If you require this product professionally fitted please contact us for a quotation.

Download Gateway 300 User Guide
Download Gateway 300 Install Guide
Make Model Years
Citroen C2 2005 - 2009
Citroen C3 2005 - 2009
Citroen C4 2004 - 2013
Citroen C4 Picasso 2006 - 2013
Citroen C5 2005 - 2013
Citroen C6 2006 - 2013
Citroen C8 2004 - 2013
Peugeot 207 2001 - 2006
Peugeot 207 2006 - 2012
Peugeot 207 2006 - 2013
Peugeot 3008 2009 - 2013
Peugeot 307 2005 - 2008
Peugeot 307 2005 - 2013
Peugeot 308 2007 - 2013
Peugeot 308 2008 - 2013
Peugeot 407 2005 - 2013
Peugeot 5008 2009 - 2013
Peugeot 607 2005 - 2013
Peugeot 807 2005 - 2013
Gateway Type
Gateway Model Gateway 300
Product Feature
Product Features iPod, iPhone, USB, Aux-in
